WGA-65 ANGLE GAUGE
New Product. Specialized for angle measurement of grooves with minimum reading 0.5°’
USE
Butt angle measurement and gap angle measurement
MATERIAL
●Stainless(SUS410)
FEATURES

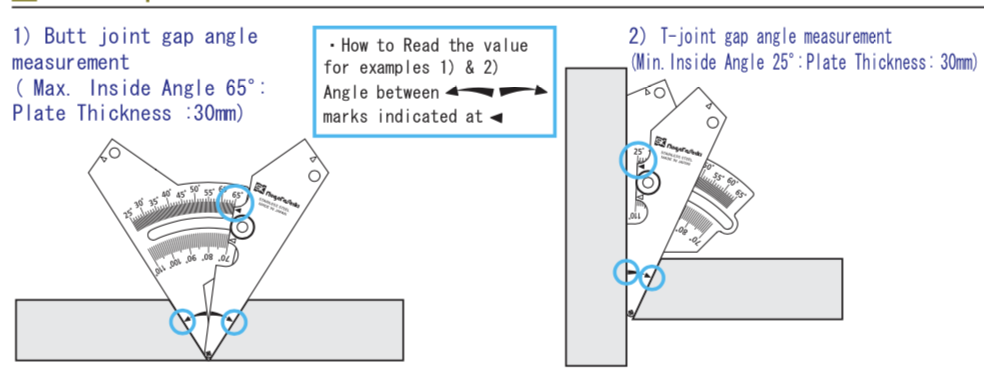

Measurement of butt joint gap angle
Sharpened tip enables measurement for root gap of 0mm, or when sheet thickness is less than 15mm
Minimum reading 0.5, lage scale for easy reading

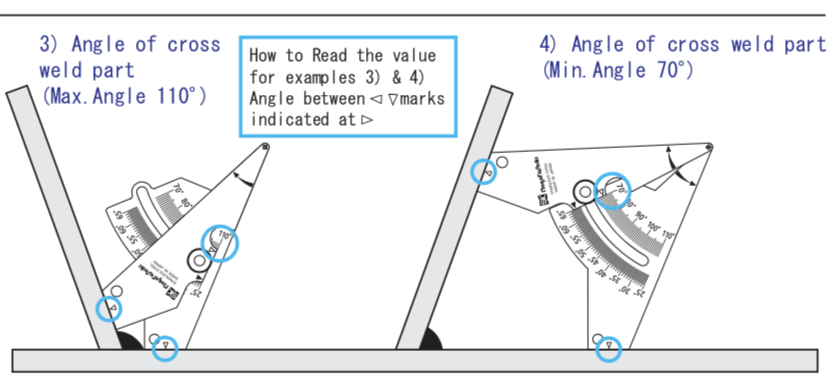

T-joint gap angle can be measured avoiding weld buildup Non-reflective satin finish for easy to read scale
Solid and convenient carrying.(Provided with plastic carrying case)
SPECIFICATIONS
Bevel angle : 25~65°(Minimum graduation: 0.5°)
Angle of cross weld part: 70-110°
|
Model No. |
Accuracy of angle |
Weight |
|
WGA-65 |
+0.5° |
73.5g |
