Product details：

A2200

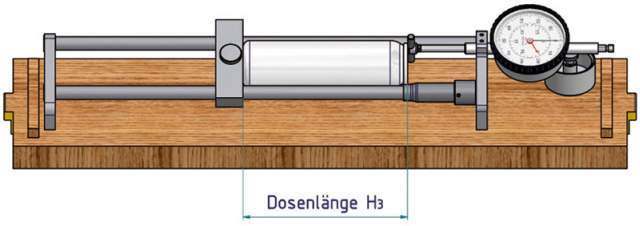

Measurement of the cap seat – height “H2” by FEA 421 D and length of the cans
Measuring range Meb: 0 – 30 mm
Scale interval Skw: 0,01 mm

Type	A2200
Display mm / inch	mm
Application	Aerosol devices
Measuring span Mes	30 mm
Measuring range Meb	0 – 30 mm
Range of indication Azb	Not available
Scale interval Skw	0,01 mm
Max. permissible errors G	0,03 mm
Repeatability limit r	0,03 mm
Measuring force F min.	0,5 N
Measuring force F max.	0,7 N
Weight	1200 g
Reference temperature	20 °C
Reference temperature	10 – 30 °C
Storage temperature	-10 – 50 °C
Inch-version	on demand
