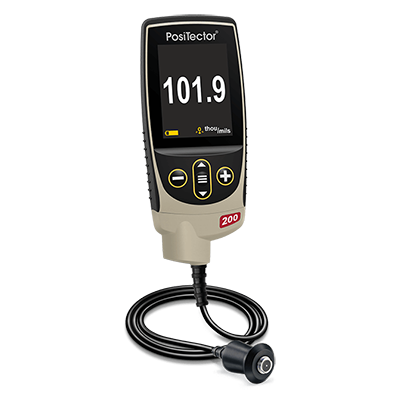

PosiTector® 200

Coating Thickness Gages for Non-Metal Substrates

Non-destructively measures a wide variety of applications using proven ultrasound technology. Measure coating thickness over wood, concrete, plastic, and more. Advanced models measure up to 3 layers with graphics.

Ready to measure—no calibration adjustment required for most applications
Large 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
PosiTector interchangeable platform—attach any PosiTector probe to a single gage body
USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software
Certificate of Calibration showing traceability to NIST or PTB included (Long Form)

Conforms to ASTM D6132 and ISO 2808

Features

Simple

Ready to measure—no adjustment required for most applications
Large 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
On-gage help explains menu items at the touch of a button
RESET feature instantly restores factory settings

Accurate

Responsive transducers provide fast, accurate readings
Certificate of Calibration showing traceability to NIST or PTB included
Proven non-destructive ultrasonic technique conforms to ASTM D6132 and ISO 2808

Powerful

Continually displays/updates average, standard deviation, min/max, and number of readings while measuring
Max Thick Mode displays the deepest ultrasonic echo eliminating the need to adjust the Lo Range—ideal for ignoring unwanted surface echos
Screen Capture – save 100 screen images for record keeping and review
Over 20 hours of continuous operation with 3 AAA batteries
USB port for fast, simple connection to a PC and to supply continuous power. USB cable included.
PosiSoft USB Drive—stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
Includes PosiSoft suite of software for viewing and reporting data
Software Updates via web keep your gage current

Durable

Weatherproof, dustproof, and water resistant—IP65-rated enclosure
Ergonomic design with durable rubberized grip
Shock-absorbing, protective rubber holster for added impact resistance
Two year warranty on gage body AND probe

Versatile

PosiTector body accepts all PosiTector 6000, 200, RTR, SPG, DPM, IRT, SST, UTG, SHD, BHI, and GLS probes easily converting from a coating thickness gage to a surface profile gage, dew point meter, soluble salt tester, ultrasonic wall thickness gage, hardness tester, or gloss meter
Auto rotating display with Flip Lock
Mils/Microns switchable
Selectable display languages
