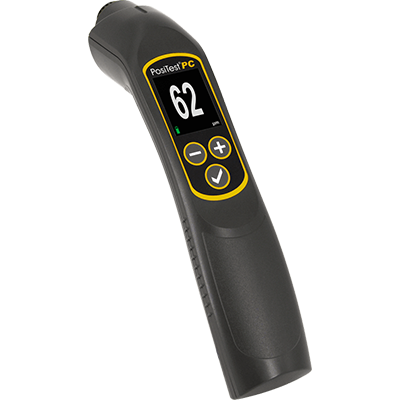

PosiTest® PC

Non-contact Uncured Powder Thickness Gage

Affordably measures uncured powder coatings using non-contact ultrasonic technology to predict a cured thickness

Dedicated stand-alone unit is ready to measure right out of the box
Up to 4x faster measurement speed*—ideal for moving lines and swinging parts
No calibration adjustment required for most powders
Storage of 999 readings with onscreen averaging. Stored readings can be downloaded to PosiSoft Desktop Software
Scan Mode continuously takes measurements—ideal for analyzing large areas

Conforms to ASTM D7378

Features

Simple

Dedicated stand-alone unit is ready to measure right out of the box
Up to 4x faster measurement speed* — ideal for moving lines and swinging parts
Easy-to-read digital display with a simple, icon based menu
Hand-held, battery operated
Ergonomic and lightweight
No calibration adjustment required for most powders
Target Grid simultaneously displays distance to the part and alignment, making measurements easy
RESET features instantly restores factory settings

Versatile

No cable to risk disturbing the applied powder
Mils/microns switchable
High contrast color display
Adjustable display brightness for optimal visibility in any environment
Toggle sound On and Off
Uses alkaline or rechargeable batteries

Durable

Solvent, acid, oil, water and dust resistant—ideal for harsh powder coating environments
Hard-shell carrying case included
Replaceable screen protects the sensor
Two year warranty

Powerful

Storage of 999 readings with onscreen averaging. Stored readings can be downloaded to PosiSoft Desktop software
Scan Mode continuously takes measurements - ideal for analyzing large areas
USB Keyboard Mode emulates keystrokes to easily stream readings to a PC or PLC
USB port for fast, simple connection to a PC and to supply continuous power
Software updates keep your instrument current

Accurate

Improved sensor technology allows easier measurement on small tubes, odd shapes and moving parts
Easy 1 and 2 point calibration adjustment options with Cal Reset to improve accuracy on unusual powders or substrates
Conforms to ASTM D7378

Specifications

Range

20 – 100 μm (0.8 – 4.0 mils)

Resolution

1 μm (0.1 mil)

Accuracy

±5 μm (± 0.2 mil)

Measurement Time

1 – 3 seconds

Measurement Distance to Powder

19 mm (0.75 inch)

Measurement Area

2 mm (0.8 inch)

Size

241 x 64 x 51 mm
(9.5" x 2.5" x 2.0")

Weight

180 g (6.4 oz.) without batteries

Based on TGIC-Free polyester powder

Gage comes complete with probe Zero Fixture, 4 AAA batteries, flat-head screwdriver, instructions, replacement probe screen, protective lens shield, USB cable, hard shell case, two (2) year warranty

PosiTector PC with advanced gage body

PosiTest PC
